SOFFITS

OVERHEAD VISUALS INTEREST.

Soffits are a key construction element that provides a clean, finished look to the underside of your eaves. But they don’t need to be drab or uninteresting. KNOTWOOD’s soffit system offers superior appearance and performance by combining the strength and durability of aluminum with the natural appeal of wood.

Soffits have historically required frequent maintenance due to a buildup of humidity and rapid deterioration of the paint applied to the wood soffit. KNOTWOOD’s Aluminum soffit not only promote maximum airflow efficiency but also eliminate the need for repainting and regular maintenance.

Soffits System

Being light weight and simple makes installing aluminum soffits a snap, especially when working overhead. Knotwood have designed two simple unique systems to cover most soffit solutions. Our snap together system uses slats in 4 different sizes from 38mm to 150mm and our soffit cladding system is available in 3 different sizes and 4 different styles. Each profile offers a distinct look while remaining simple to install.

For installation guidelines, refer to our technical drawings that are designed to comply with the requirements of your Building Code. Assistance is also available with development outside of these Standards; please contact us with your requirements.

PROFILES

Standard ITEMs (ST)

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE)

4” SIDING (ST)
KEC100
4” x 5/8” x 18’6”
100mm x 16mm x 5650mm

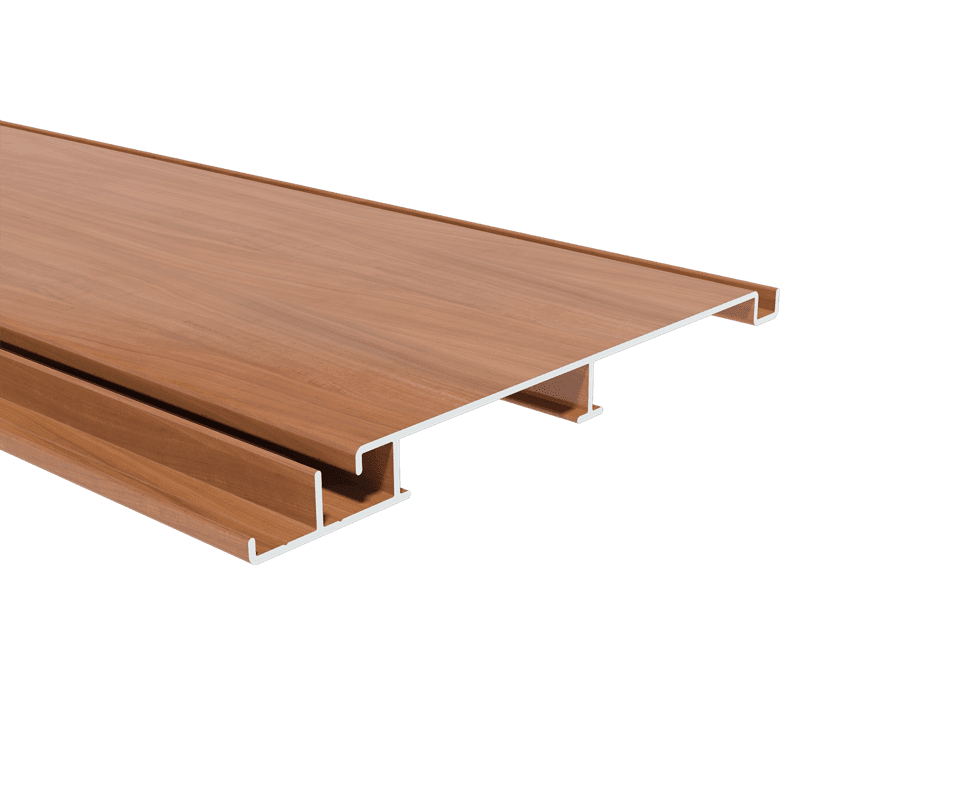

6” SOFFIT/CLADDING PANEL (ST)
KEC150
6” x 5/8” x 18’6”
150mm x 16mm x 5650mm

VENTED CLADDING BOARD (ST)
KECV150
6” x 5/8” x 18’6”
150mm x 16mm x 5650mm

8” SIDING (ST)
KEC200
8″ x 5/8″ x 18’6″
200mm x 16mm x 5650mm

STARTER (ST)
KEDSTRADJ
1 5/8” x 5/8” x 18’6”
42mm x 16mm x 5650mm

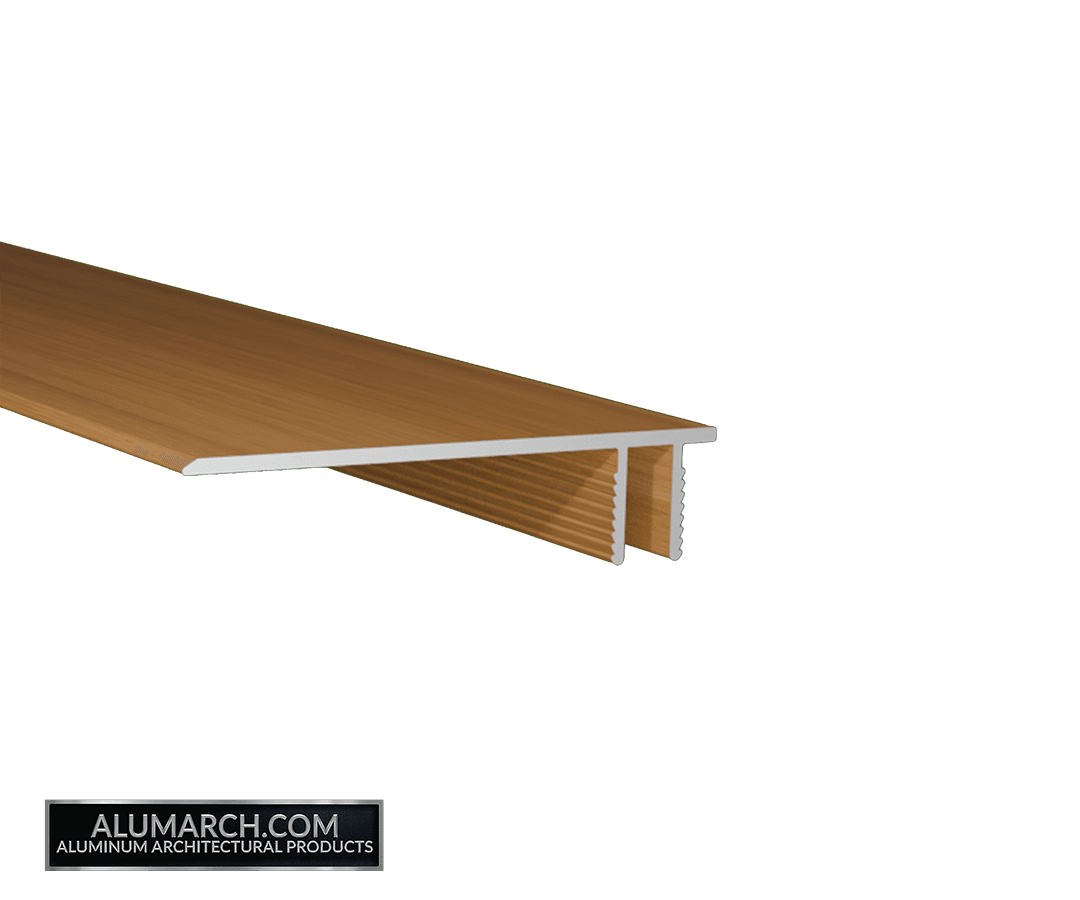

TOP CLIP LARGE (ST)
KECFTTLM
2 9/16” x 5/8” x 18’6”
65mm x 16mm x 5650mm

TOP CLIP BASE (ST)
KECFBF
2 3/4” x 5/8” x 18’6”
70mm x 16mm x 5650mm

TOP JOINER (ST)
KECTJM
2” x 5/8” x 18’6”
50mm x 16mm x 5650mm

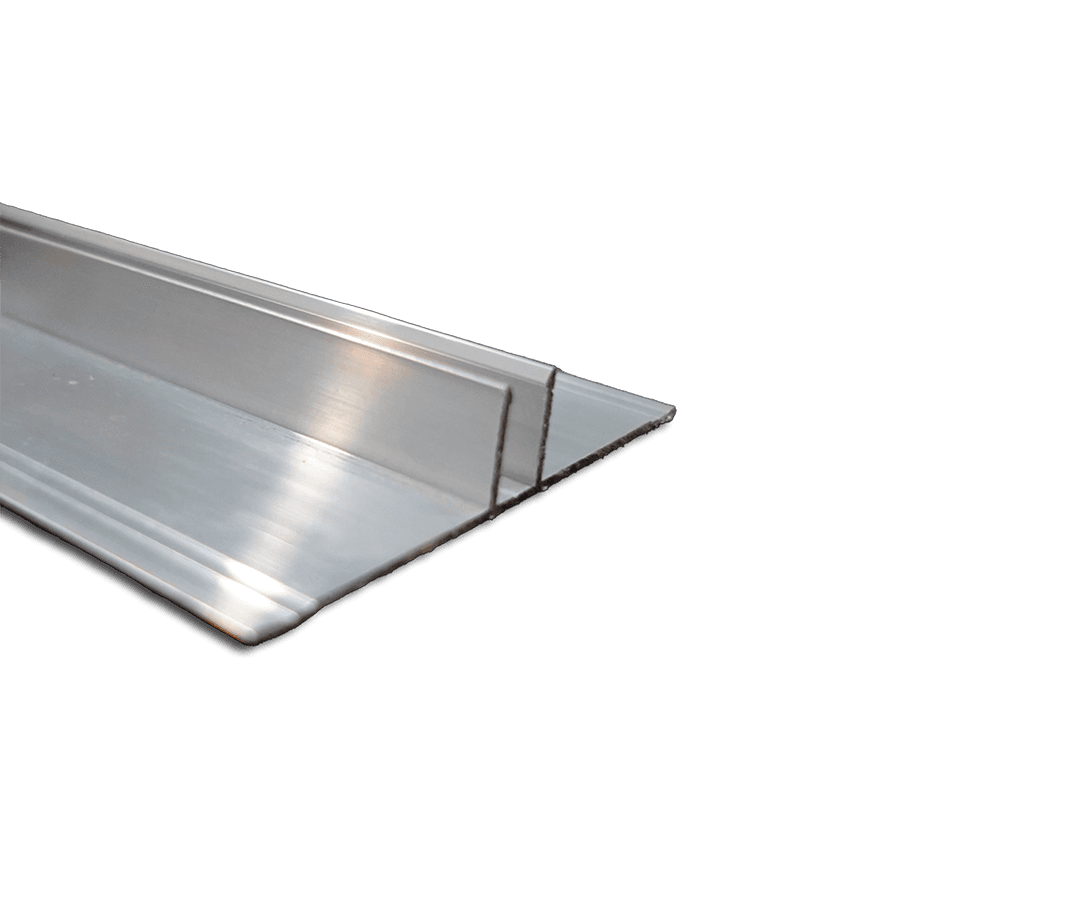

TOP JOINER BASE (ST)
KECJBF
4 x 5/8” x 18’6”
100mm x 16mm x 5650mm

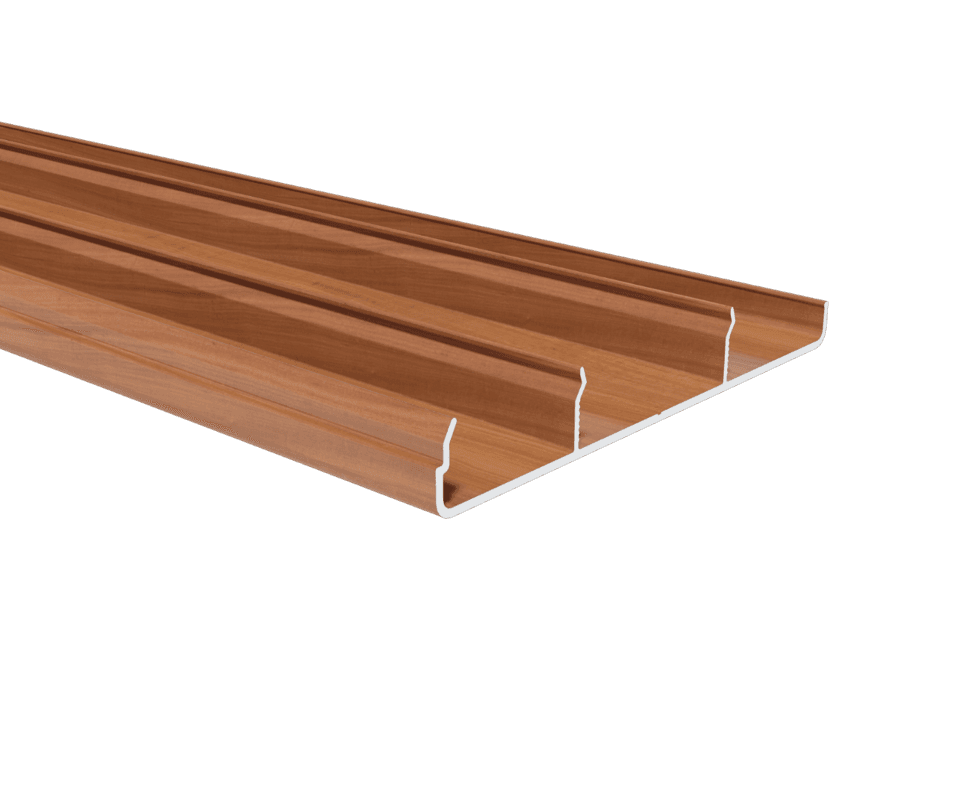

6” SELF MATING (ST)
KESM15016
6” x 5/8” x 18’6”
150mm x 16mm x 5650mm

6” SELF MATING CAP (ST)
KAEC15016-R
6” x 5/8”
150mm x 16mm

CLADDING CLIP (ST)
KAOCC45
Bag of 100
1 ¾”/45mm

Special Order ITEMS (SO)

Extended Lead Times - MINIMUM ORDER QUANTITIES MAY APPLY
ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE)

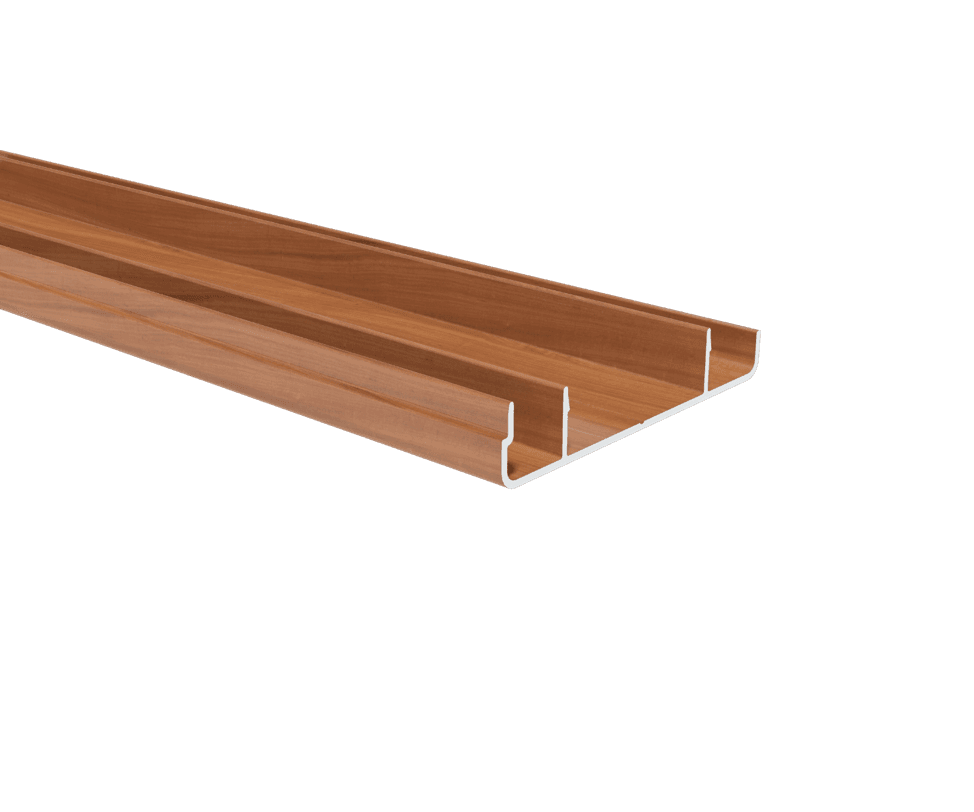

1 ½” SELF MATING (SO)
KESM3816
1 1/2” x 5/8” x 18’6”
38mm x 16mm x 5650mm

2 ½” SELF MATING (SO)
KESM6516
2 1/2” x 5/8” x 18’6”
65mm x 16mm x 5650mm

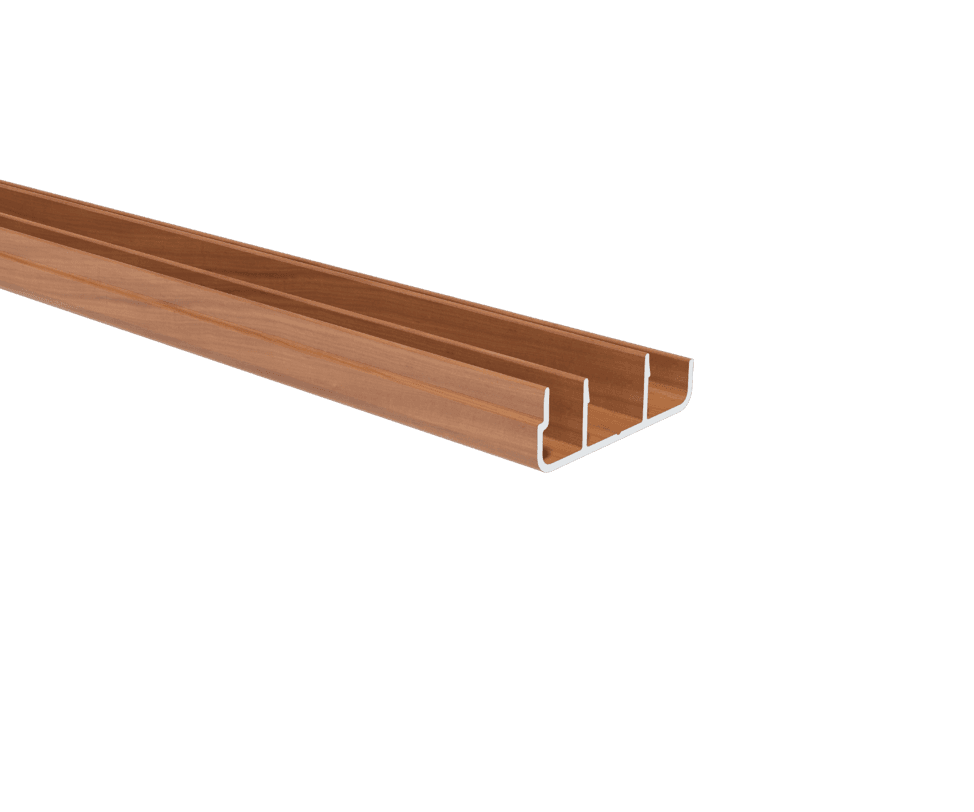

4” SELF MATING (SO)
KESM10016
4” x 5/8” x 18’6”
100mm x 16mm x 5650mm

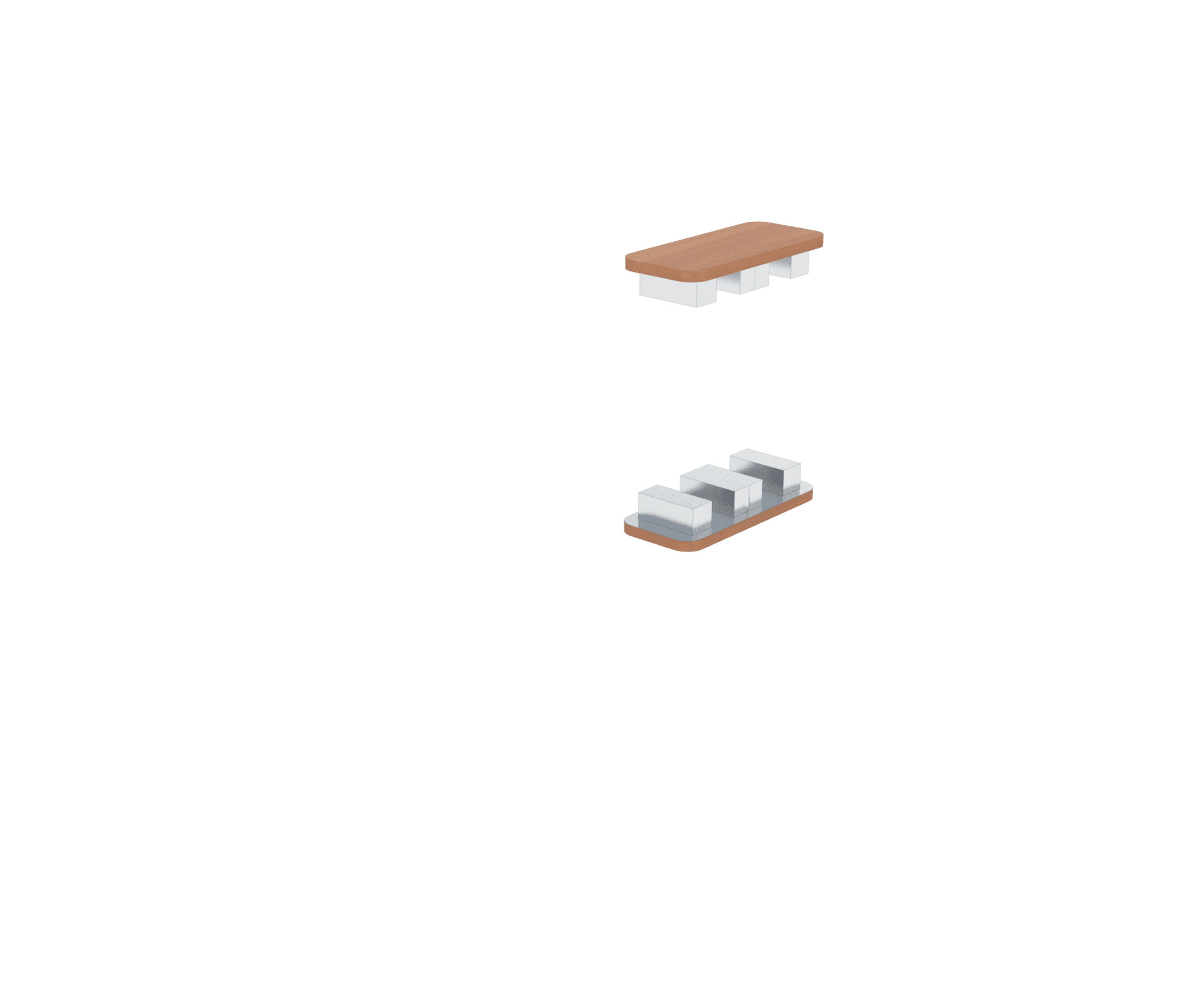

2 1/2” SELF MATING CAP (SO)
KAEC6516-R
2 1/2” x 5/8”
65mm x 16mm

4” SELF MATING CAP (SO)
KAEC10016-R
4” x 5/8”
100mm x 16mm

1 1/2” SELF MATING CAP (SO)
KAEC3816-R
1 1/2” x 5/8”
38mm x 16mm

ALL PROFILES ARE: 18 FT 6 Inches | 5.65M (5650MM) IN LENGTH (18 FT 4 INCHES USEABLE)

COLORS FOR EVERY CHOICE

38 beautiful woodgrain colors
More than 70 solid colors with a Matt, Satin, Gloss or Textura finish

SOFFIT ASSEMBLY

Soffit Assembly Spacing
SOFFIT ASSEMBLY WITH SPACING
Soffit Assembly No Spacing copy
SOFFIT ASSEMBLY WITH NO SPACING
Soffit starter CAD
STARTER
Soffit Top Clip CAD good
TOP CLIP
Self Mating Cad Soffit
SELF MATING SLAT
SOFFIT Joiner CAD 2
JOINER

STANDARD SHOP DRAWINGS


Our products require so little maintenance that you can spend your time doing what you love this summer...

and every other summer.

We got you covered.

soffit joiner on mitred corner
